WLD-TF
WLD

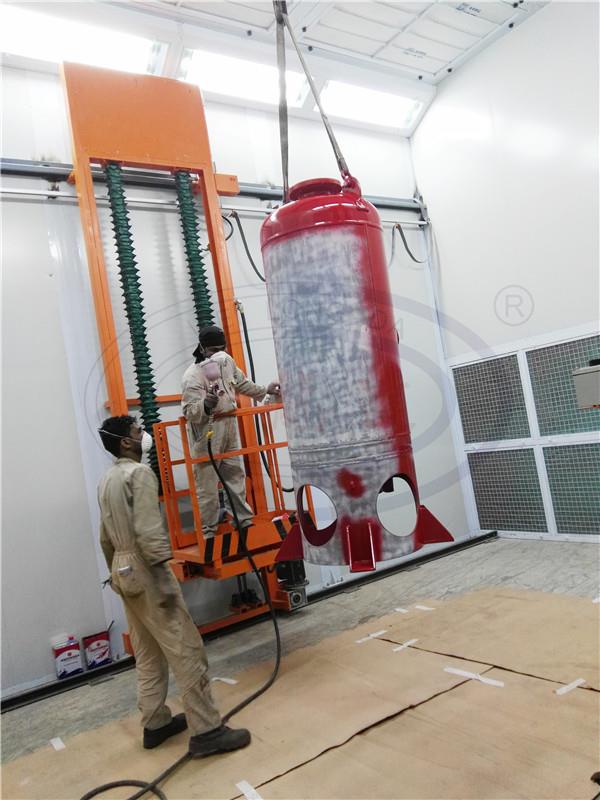

3D car lift is supplementary equipment that used in automobiles, trains and other large or medium-sized work piece. It has high rigidity, stability, rational layout, easy operation, operation of safe and reliable etc. It is the most ideal lifting equipment for reduce the labor intensity and improve work efficiency;
2. Structure

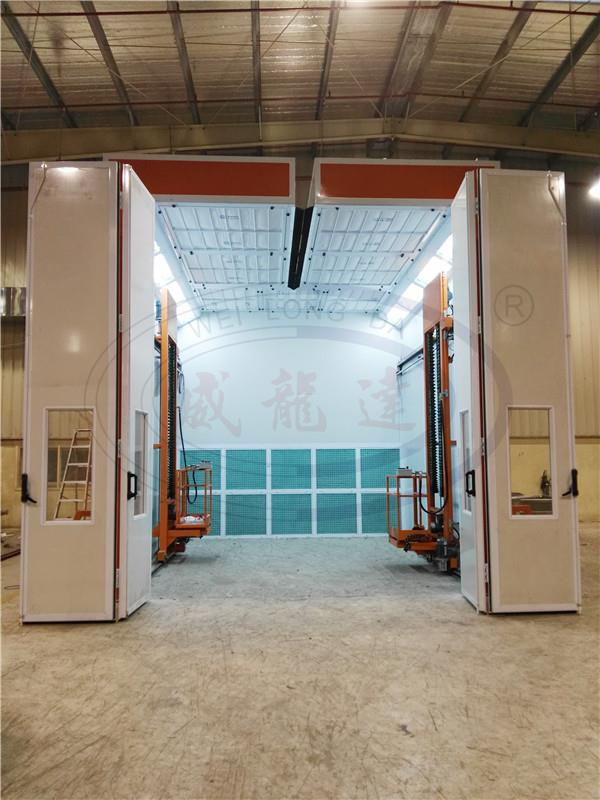

The 3D lift consists of vertical support post, working table, upper rail, down rail, convey system and anti-explosion control box . It can move left and right, upper and down and towards the front also.
3.The basic technical parameters for reference.
Working table size (L×W）： | L900×W900 |
Longitudinal moving distance | Depends on the internal length of booth |
Longitudinal moving speed | 8m/min |
Vertical lifting height： | 500-3000mm |
Vertical lifting speed | 5m/min |
Lateral extending distance： | 800mm |
Max. Loading： | 300kg |
Power supply | 380V/50Hz/3Phase,220V/415/60Hz/50Hz etc can be customized |
Total power | 1.5Kw+0.75Kw+0.55Kw |
Noise | ≤70db |
Remark: Usually the 3D lift is customized according to different paint booths and workpieces,so the parameters can be adjustable according to different conditions. We need to know below information before presenting an exact price :
1.) The inner size of paint booth?
2.) The max size of workpiece
3.) The max loading do you need for the working table?
4.) The internal width of spray booth must be wider than 5.5m. For example,if the bus width is 2.55m,then it will be 2.95m available for 3D lift. If the bus or workpiece width is more than 2.55m,please confirm the required booth width with us.
