Automatic Powder Coating Line For Fan Cover Configuration:
Part One: Powder Spraying Oven (Overhead Bridge)
1. Furnace body skeleton: 10 # square tube, powder coating treatment (orange).
2. Cotton board: 125mm rock wool board (color: gray white), inner 0.8mm galvanized board, outer 0.476mm color board. Bulk density: 100kg/m ³. Thermal insulation zone/enclosure board: 50mm thick, inner and outer 0.476mm color board
3. Combustion chamber: Stainless steel 304 inner liner.
4. Combustion engine: Lialu 30W large truck (dual stage fire).
5. Drying oven: No heating system, curing heat transfer. Medium galvanized sheet partition.
6. Exhaust gas collection hood: 1 set
7. Maintenance door: 1 set (including ladder and guardrail)
8. Edge wrapping: Galvanized sheet 2.0t, powder coating treatment (orange)
9. Exhaust hood: 1 set
Part Two: Powder Spraying Cabinet
1. Material: Galvanized sheet 1.2t, powder coated.
2. Base: 5 # square skeleton, bottom exhaust, flip plate.
3. Lighting: LED
4. Secondary recycling: 9 sets of filter cartridges (purchased externally, see detailed drawing)
5. Great Whirlwind: φ 1000mm (purchased externally, see detailed drawing)
6. Manual powder spray gun: 4 sets (purchased externally, with three floating plates), equipped with powder buckets and vibrating screens.
7. Manual control air valve: 2 sets
8. Emergency stop: 2 sets each
Part Three: Conveyor System
1. Track/Chain: Taiwan 150 # (with fork single suspension plate), section 57 * 67, total length about 150m (Kunda brand)
2. Oil pan: made of galvanized sheet material
3. One time hanger: heart-shaped (with rivet pins)
4. Drive device: 4kw motor, equipped with safety device
5. Tensioning device: 1 set
6. Automatic fuel dispenser: 1 set
7. Track column: 10 # square tube, powder coating treatment
8. Emergency stop: 2 sets (1 set each for the upper and lower parts positions)
Part Four: Electric Control System
1. All electrical control projects should be integrated into one electrical control box
2. Combustion engine: 300000 kcal (dual stage fire)
3. Curing temperature probes: a total of 5. 1 combustion chamber, 1 return air duct, and 3 furnace probes
4. Curing furnace fan: 5kw
5. Drying temperature probe (temperature not adjustable): 1
6. Powder spraying cabinet: 2 lights/set, a total of 4 lights. There are 8 5-hole plugs in total
7. Secondary recycling: 22kw fan, 9 sets of reverse blowing
8. Cyclone: 1 powder pump return control
9. Conveyor: Drive motor 4kw, emergency stop total 6 sets: 1 set for upper part, 1 set for lower part, 2 sets for powder spraying each

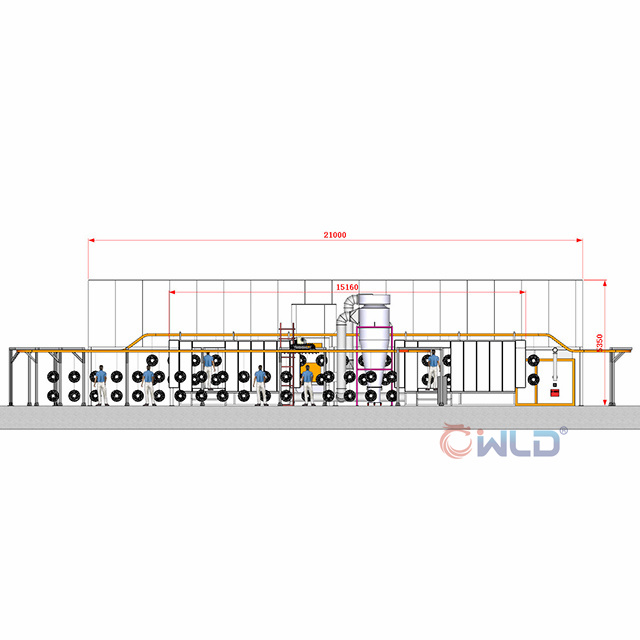

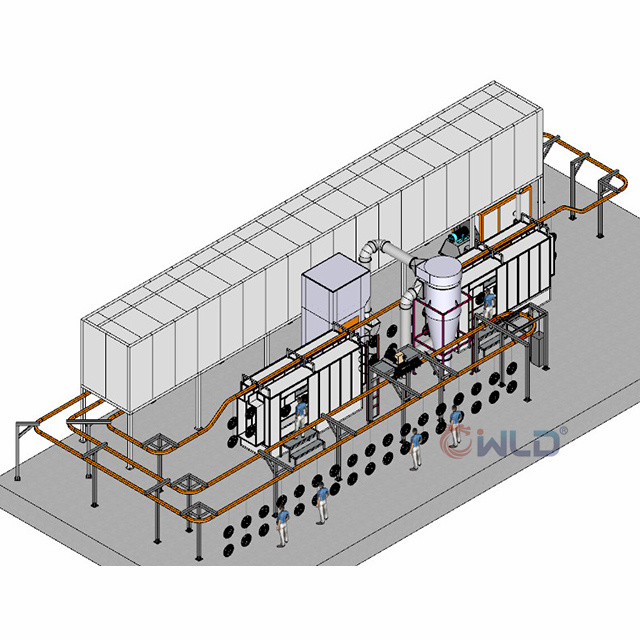

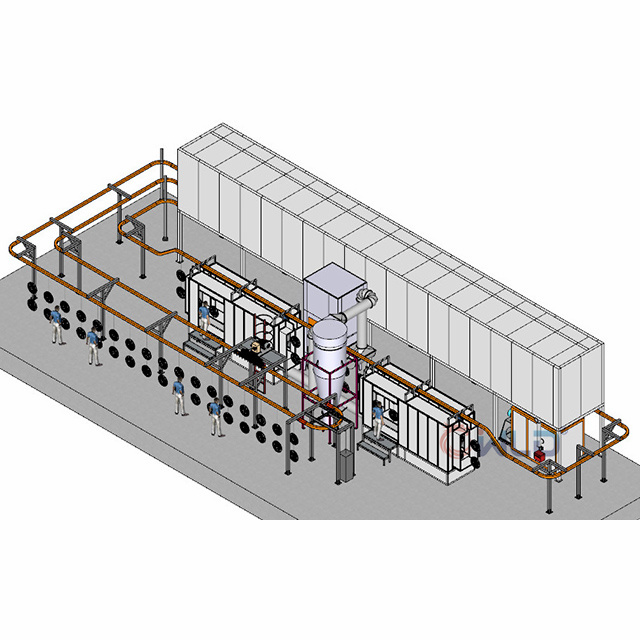

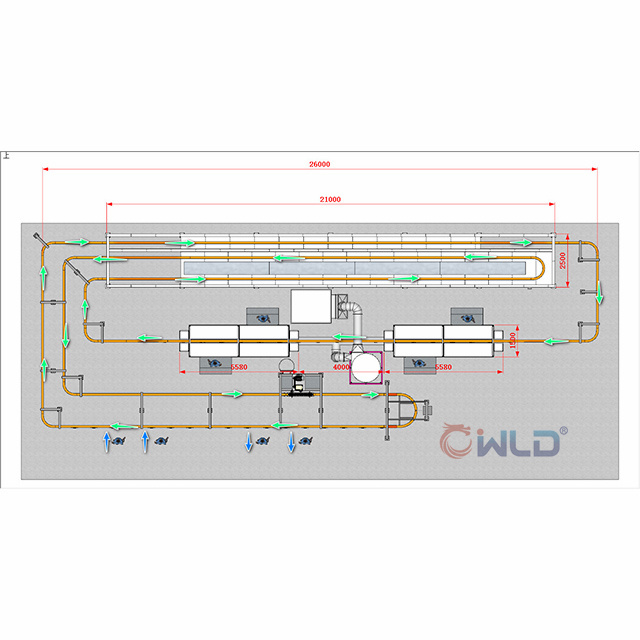

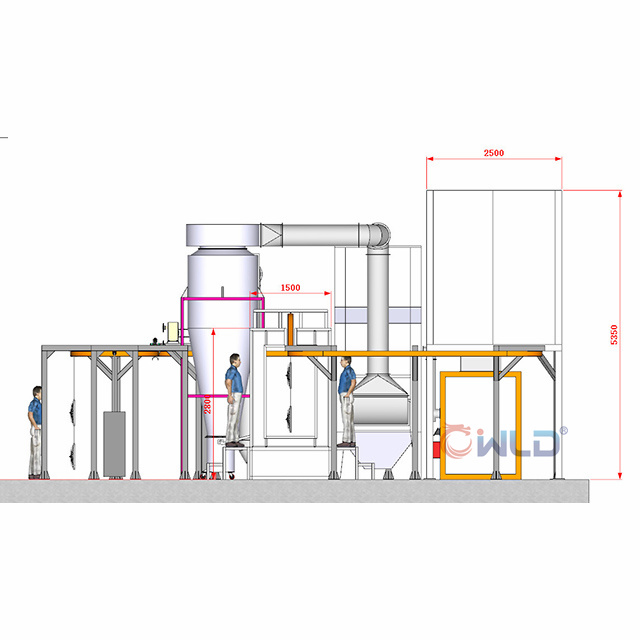

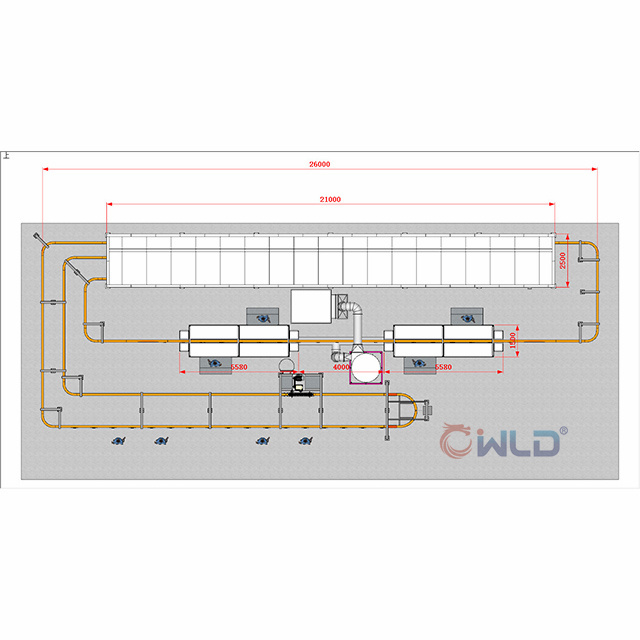

One customer from overseas ordered this automatic powder coating line. This automatic auto powder coating line is used for fan cover coating. It is consist of conveying chains,automatic powder spraying oven,manaul powder spraying oven,cyclone recycling system, baking oven and control system.It can improve the work efficiency and save energy,suitable for big quantity production. Meanwhile,it can save labor cost. Now we are manufactering this powder coating line and some parts are produced. We will show more finished goods after production.We are a big spray booth and powder coating line manufacturer in Guangzhou,China. We are looking for dealers from overseas. If you have interest,welcome to contact us,thanks.
