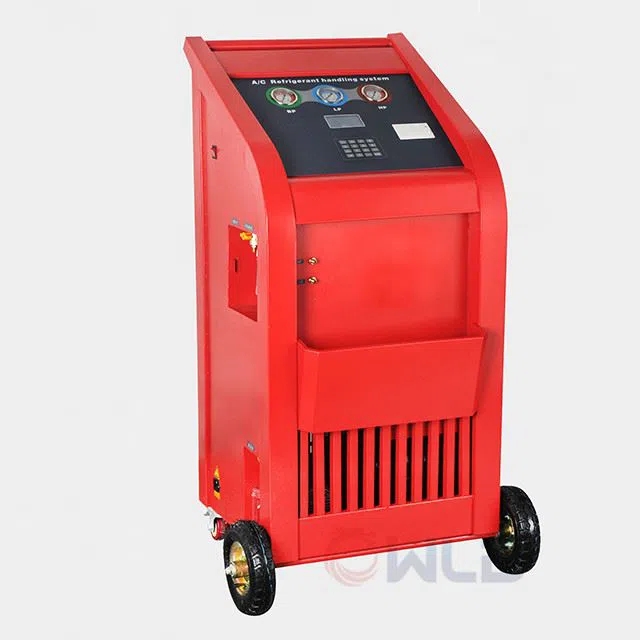

WLD-L800 Fully Automatic A/C Refrigerant Recovery & Charging Machine

*Power supply:AC 220V±10%,50/60Hz

*Compressor:SC15G, DANFOSS brand

*Condenser and cooling fan included

*Recovery rate:97%,stop at 0 bar automatically

*Vapor refrigerant recovery speed:350g/min

*Liquid refrigerant recovery speed:250g/min

*Charge speed: 1500g/min

*Vacuum speed: 7200L/Hour

*Vacuum pump: double stage 2L pump

*Dry filter:600ml

*Max. refrigerant weight in gas cylinder:10kg

*Load cell accuracy for gas cylinder:±5g

*New/old oil bottle capacity：250ml

*Max work pressure:17.5bar

*Database search

*Data Print

*Plywood:88*76*144cm=0.963cbm

*Gross Weight: 130kg

Main funtions:

*Recovey/Recycling (drain used oil)

*Vacuum

*Refill new oil

*Recharge

*Full automatic mode

*Recovey/Recycling (drain used oil)

*Vacuum                        *Refill new oil                 *Recharge

*With database serach*Data print.

*With imported brand compressor to make excellent efficient.(SC15CL, DANFOSS brand)

*Condenser and cooling fan included

*It employs high-duty vacuum pump.

*High-precision electronic scale weighs the refrigerant filling and reclaiming.

*Specific interface for small container of coolant supply

*Its purification & filtration system efficiently ensures recovery of used refrigerant.

*Simple pipeline connection.Operation starts once the hose of the machine is connected to the interface of the air conditioner yet to betested.

*Compact construction and parts versatility help repair and maintenance.
