WLD-10M
WLD
Part 1: Building Body (White)

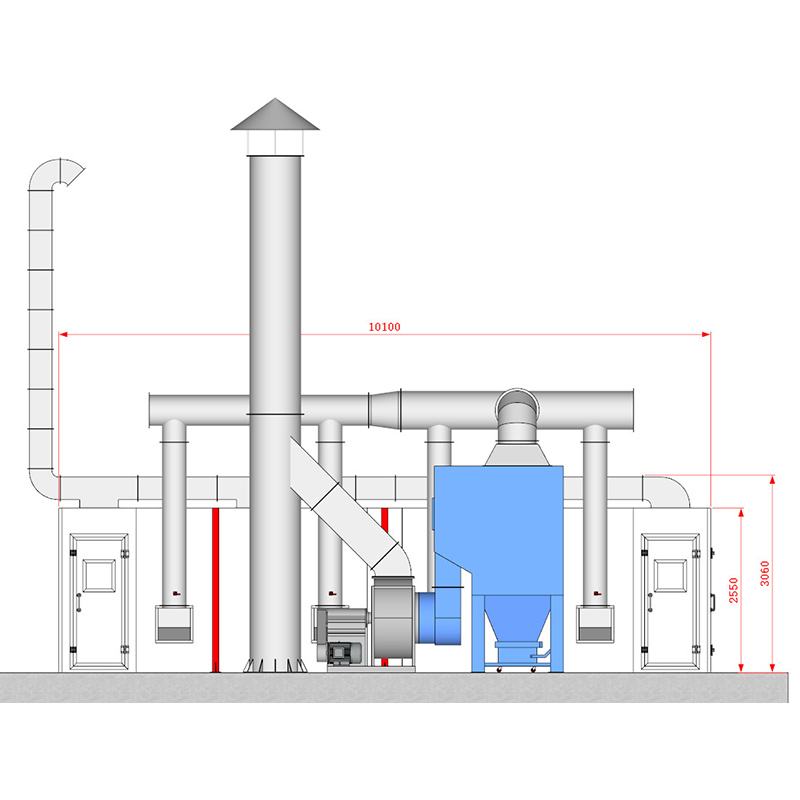

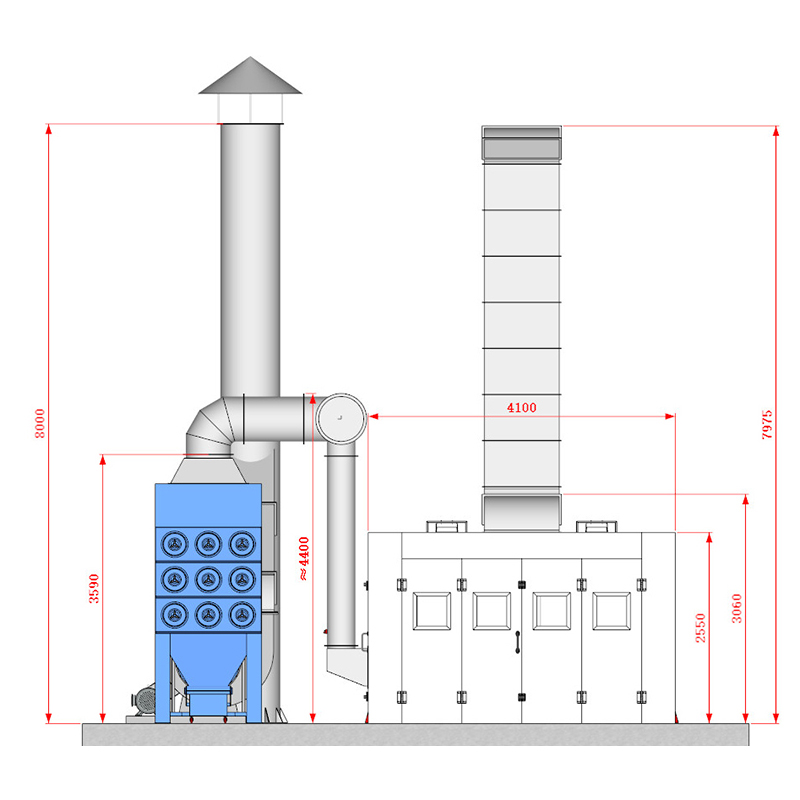

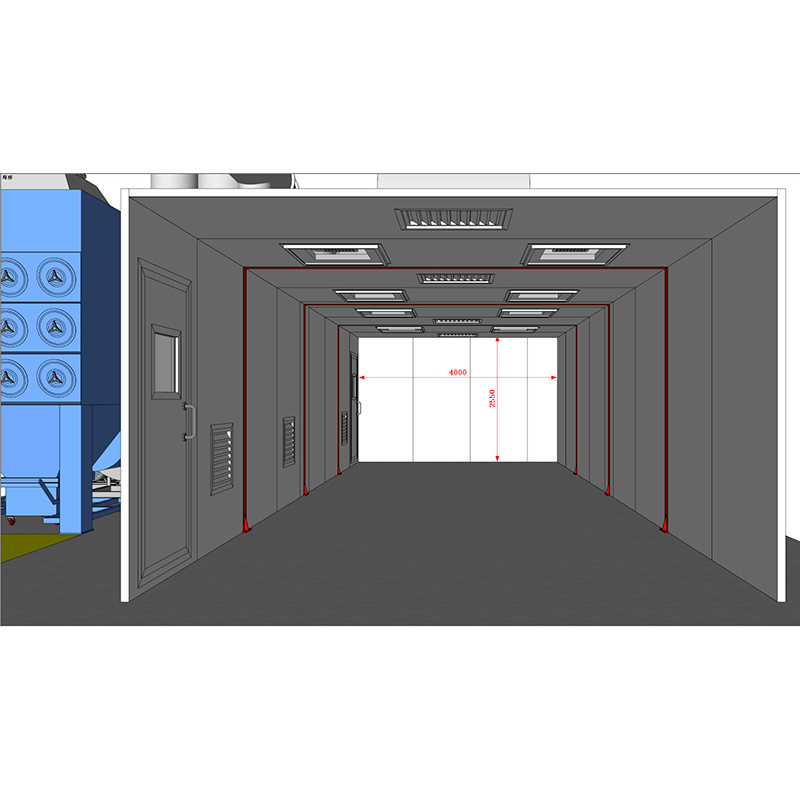

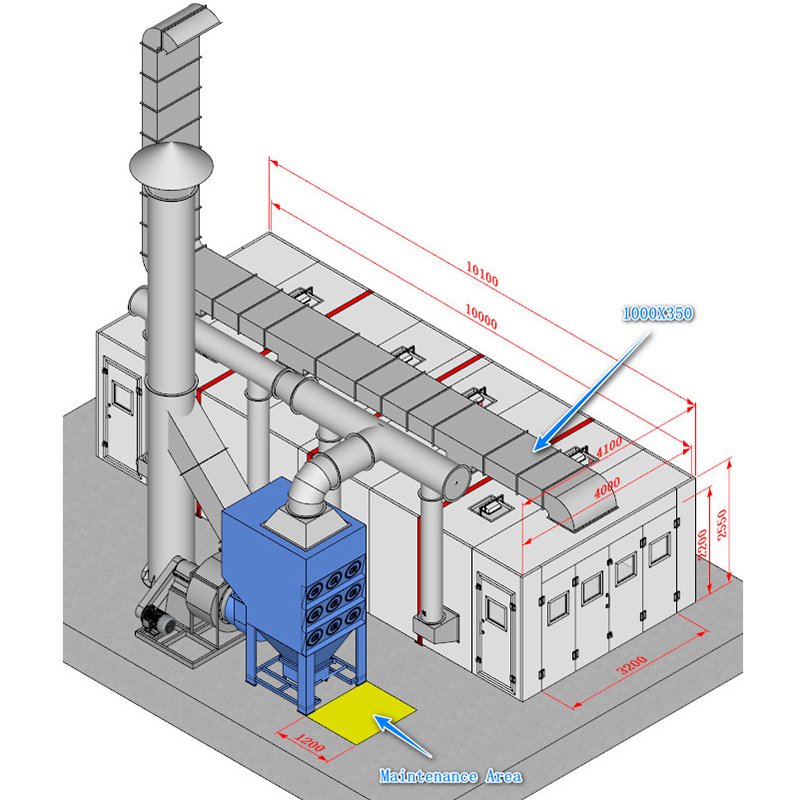

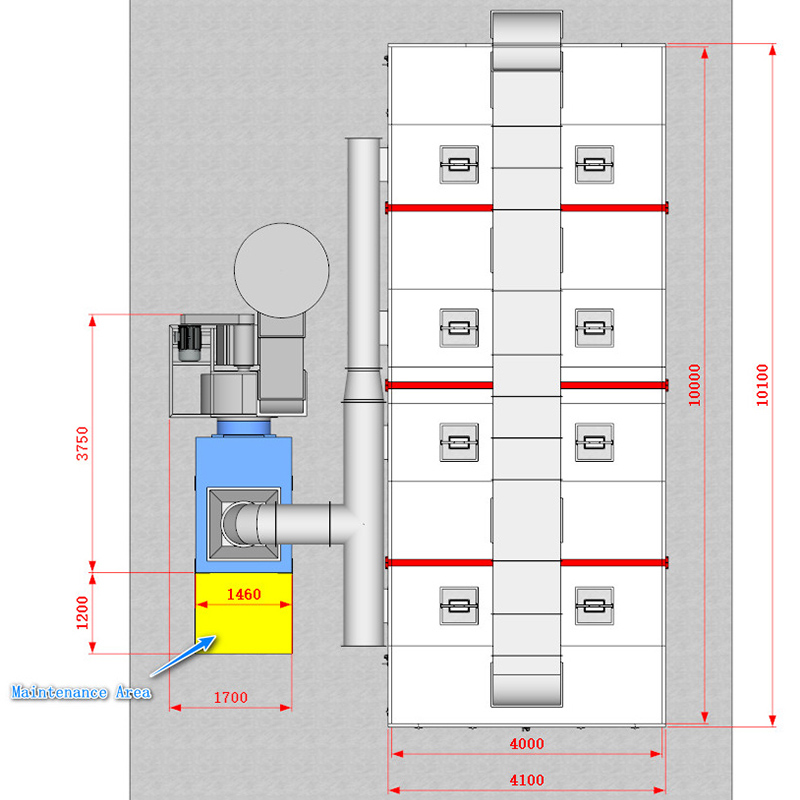

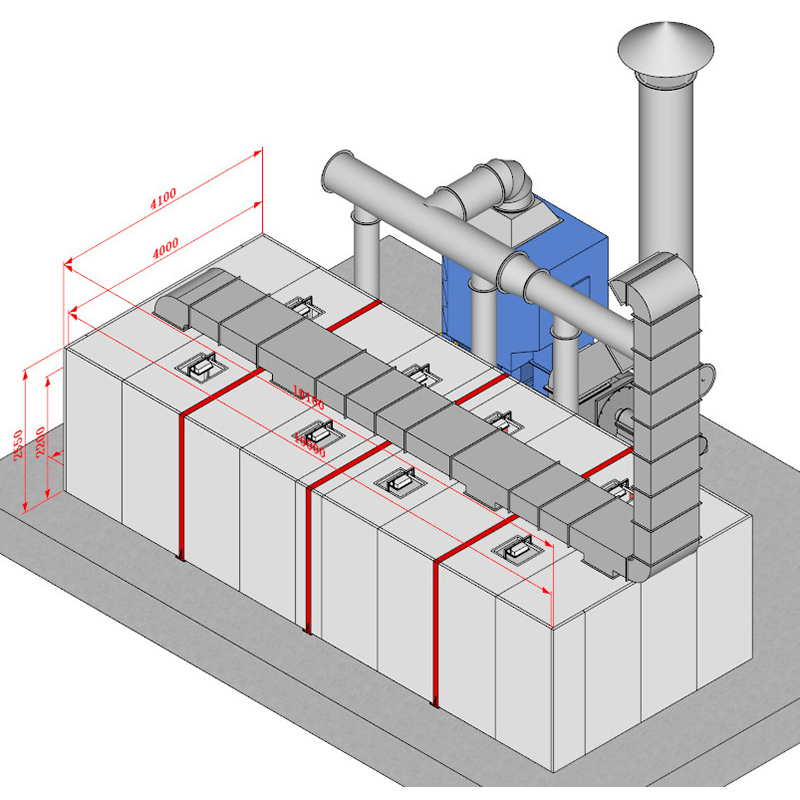

Internal dimensions: L10 × W4 × H2.5 m; external dimensions: L10.1 × W4.1 × H2.55 m.
2. Entrance/Exit: One white four-panel main door at the front (equipped with a viewing window and a door handle); dimensions: W3200 × H2200 mm; the horizontal lintel and front vertical panel are white. Two small doors, each equipped with a door closer.
3. Building envelope: 50 mm thick rock wool boards (with a high bulk density); the roof panels shall be the same as the wall panels. 3 mm thick rubber protective layer shall be installed inside the building envelope; the rubber clamping plates shall be 30 × 5 mm flat bars.
4. Fan: 4–72 fan, 22 kw; quantity: 1 unit.
4. Explosion-proof 100 W LED lighting fixtures (8 units), equipped with the corresponding wiring and a simple switch.
5. All piping components.
order number | name | project | qualification |
1 | dust wiper | Dust collector model | MH-LDC18-22KW |
Filter element specifications | φ325*1200mm | ||
Number of filter elements | 9 pieces | ||
Filter element material | polyester fibre | ||
filter area | 150m2 | ||
Air handling capacity | 12000m3/h | ||
Filter air velocity | 1.0~1.5m/min | ||
Cleaning method | Automatic pulse backblowing | ||
Ash cleaning air consumption | 0.5m3/min | ||
efficiency of dust collection | 99.99% | ||
Dust extraction fan power | 1 unit * 22 kW | ||
Start-up method for dust extraction fans | Variable Frequency Drive – Inovance | ||
Dust emissions | ≤50mg/m3 | ||
Air change rate | 1~1.5N/MIN | ||
Dust inlet size | φ500mm | ||
electric cabinet | Electrical panel, 800 × 600 mm; includes frequency converter, lighting switch, and fan start/stop function Three-phase, 220 V, 60 Hz | ||
else | Pressure differential gauge, pressure regulating valve | ||
2 | Sandblasting tank | MH-600P-1 | Volume: 0.3 m³; φ625 mm; single nozzle Filter + pressure regulator + pressure gauge + Thomson valve protective suit + temperature controller + filter + air line 8 m φ25*40 sand pipe, 10 mm spray gun |
