WLD9000AU
WeiLongDa

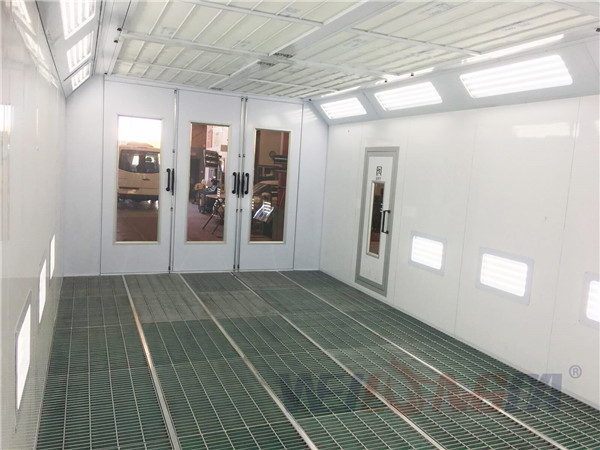

AU Australia Luxury Spray Booth
WLD9000AU Australia Type Paint Booth Configuration:
Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
Basement: Galvanized steel sheet and square steel pipe construction. 3 rows of grids with floor filter & 2 rows of checkered plates. Full ramps.
Door: 4 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3500(w) x 2750(h). 1 pc of emergency door. Watching window with aluminum frame.
Air Circulation System: 1 x 7.5kw direct drive intake fan, 1x5.5kw direct drive exhaust fan. BELIMO 20N electric damper.
Burner: Italy RielloG20 diesel burner, 200000Kcal/h. The heating time 5-7min(20-60。C).Max. temperature at 80。C. Fuel consumption is 4-5kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System: Ceiling light has 32 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps. 900 Lux. All lights are accessed from outside the booth.
Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture
granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Control System: The system is composed of PLC, air pressure switch and Snyder electronic components.
Pollution Control System: Special configure with M pattern Active Carbon pocket Filter System.
WLD9000AU Australia Luxury Paint Spray Booth is special designed for Australia customers. The light fixtures are opened from outside of the outside of paint booth.It is equipped with turbo fan also. Australia and New Zealand customers like it.
