WLD9300
WeiLongDa
WLD9300 Automotive Car Spray Paint Booth Configuration:
Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
Basement: Galvanized steel sheet and square steel pipe construction. Whole grids with floor filter. Full ramps.
Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door. Watching window with aluminum frame.
Air Circulation System: 1x11kw direct drive intake fan, 1x7.5kw direct drive exhaust fan. BELIMO 20N electric damper.
Water Based Paint Drying System: 60 units ceiling nozzles with 3 sets of 2.2kw motor fans.
Burner: Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60。C). Max. temperature at 80。C. Fuel consumption is 5-6kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.

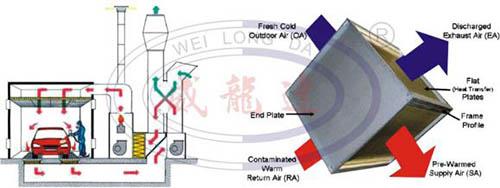

Heat Recycle System: Are recuperative, moisture is not recovered. The heat passes through thin plates, with recovery levels of up to 38%. The air streams are strictly separated, whenever solvents are used, the intake and exhaust streams have to be kept absolutely separate. That frequently makes the cross plate heat exchanger the perfect solution. The amortization period is short. Often less than two years.
Lighting System: Ceiling light has 32 pcs of 18w LED LED lamps. Side light has 32 pcs of 18w LED LED lamps. 1200 Lux.
Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Control System: Touch screen control, the system is composed of PLC, Converter, air pressure transducer and Snyder electronic components. Automation Intelligent control which can save 25% energy than normal system.
Pollution Control System: Special configure with M pattern Active Carbon pocket Filter System.
WLD9300 Automotive car spray paint booth is widely used in European countries which have cold winter,such as Sweden,Iceland,Denmark,Norway.This model has special heat recycling system which can save energy and heat.
WLD9300 Automotive Car Spray Paint Booth Configuration:
Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.
Basement: Galvanized steel sheet and square steel pipe construction. Whole grids with floor filter. Full ramps.
Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door. Watching window with aluminum frame.
Air Circulation System: 1x11kw direct drive intake fan, 1x7.5kw direct drive exhaust fan. BELIMO 20N electric damper.
Water Based Paint Drying System: 60 units ceiling nozzles with 3 sets of 2.2kw motor fans.
Burner: Italy Riello RG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60。C). Max. temperature at 80。C. Fuel consumption is 5-6kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Heat Recycle System: Are recuperative, moisture is not recovered. The heat passes through thin plates, with recovery levels of up to 38%. The air streams are strictly separated, whenever solvents are used, the intake and exhaust streams have to be kept absolutely separate. That frequently makes the cross plate heat exchanger the perfect solution. The amortization period is short. Often less than two years.
Lighting System: Ceiling light has 32 pcs of 18w LED LED lamps. Side light has 32 pcs of 18w LED LED lamps. 1200 Lux.
Air Purification: Dual filtering structure. The primary filter is M pattern nonwoven filter bags. It can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Control System: Touch screen control, the system is composed of PLC, Converter, air pressure transducer and Snyder electronic components. Automation Intelligent control which can save 25% energy than normal system.
Pollution Control System: Special configure with M pattern Active Carbon pocket Filter System.
WLD9300 Automotive car spray paint booth is widely used in European countries which have cold winter,such as Sweden,Iceland,Denmark,Norway.This model has special heat recycling system which can save energy and heat.
